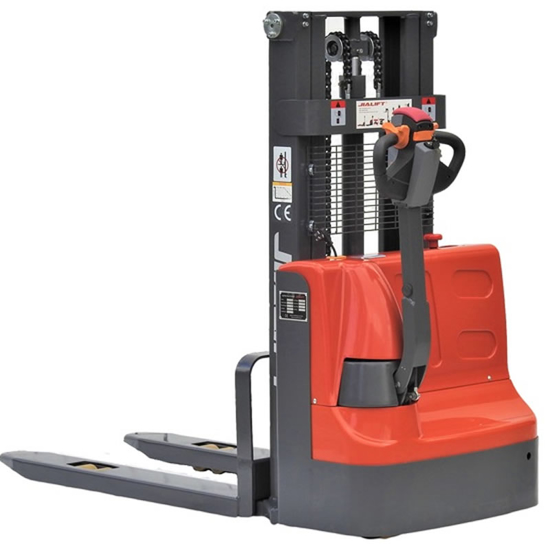

Full Electric Stacker 1000kg 2000mm

Full Electric Stacker 1000kg 2000mm

Electric economy stacker series offers an attractive appearance, convenient operation, and features. With a lifting capacity of 1000kg.

Advantages:

• The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces.

• Thought it is economical power stacker, it is still equipped with high-power and high- performance lifting pump station, which ensures the goods lifting.

• The turtle speed switch on the handle makes low-speed control more precise.

• Germany imported waterproof micro-switches are applied in the cold, damp, dusty and other harsh environments.

• YONGCI motor drive system is with small size, light weight, low loss and high efficiency.

Specification:

• Capacity : 1000kg

• Load Capacity on Max Height : 700kg

• Lift Height : 2000mm

• Turning radius : 1336mm

• Load Center Distance : 600mm

• Fork Length : 1150mm

• Fork Outside Width : 570/695mm

• Single Fork Width : 160mm

• Min Fork Height : 86mm

• Support Leg Length : 928mm

• Support Leg Height : 75mm

• Single Support Leg Width : 124mm

• Support Leg Inside Width : 410mm

• Support Leg Outside Width : 660mm

• Overall Length : 1755mm

• Overall Width : 795mm

• Lowered Mast Height : 1494mm

• Extended Mast Height : 2424mm

• Lifting Motor : 2.2kw

• Driving Motor : 0.75kw

• Battery Voltage : 2x12V/100Ah

• Charger : 24V/10A

• Unit Weight : 441kg

In Stock Melbourne.
