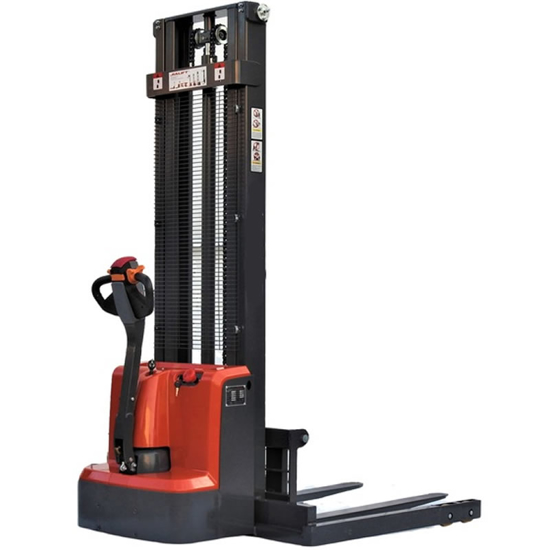

Full Electric Straddle Stacker 1000kg 3000mm

Full Electric Straddle Stacker 1000kg 3000mm

Full Electric Straddle Stacker steering wheel seat in the middle. Electric straddle stacker has built-in charger which is more convenient. Turtle speed switch on the handle makes low-speed control more precise.

Advantages:

• The steering wheel seat in the middle.
• Build-in charger, it’s more convenient.
• Turtle speed switch on the handle makes low-speed control more precise
• Straddle leg design ideal for lifting enclosed pallet
• Intelligent control and drive technology, flexible and safe operating
• Adjustable fork width
• Easy service and maintenance

Specification:

• Capacity : 1000kg
• Load Capacity on Max Height : 700kg
• Lift Height : 3000mm
• Load Center Distance : 600mm
• Fork Length : 1150mm
• Fork Length : 210-830mm
• Single Fork Width : 100mm
• Min Fork Height : 85mm
• Support Leg Length : 1120mm
• Support Leg Height : 100mm
• Single Support Leg Width : 50mm
• Support Leg Inside Width : 1225mm
• Support Leg Outside Width : 1325mm
• Overall Length : 1800mm
• Overall Width : 1325mm
• Lowered Mast Height : 1994mm
• Extended Mast Height : 3424mm
• Lifting Motor : 2.2kw
• Driving Motor : 0.75kw
• Battery Voltage : 2x12V/100Ah
• Charger : 24V/10A
• Unit Weight : 500kg

In Stock Melbourne.
