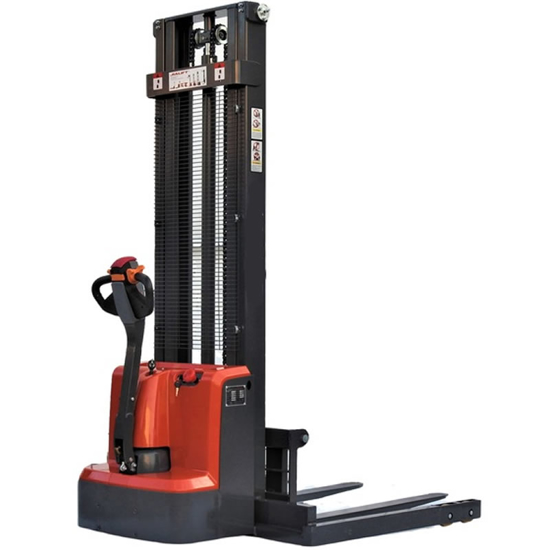

Full Electric Straddle Stacker 1000kg 3500mm

Full Electric Straddle Stacker 1000kg 3500mm

Full Electric Straddle Stacker steering wheel seat in the middle. Electric straddle stacker has built-in charger and in stock Melbourne.

Advantages:

• The steering wheel seat in the middle.

• Build-in charger, it’s more convenient.

• Turtle speed switch on the handle makes low-speed control more precise

• Straddle leg design ideal for lifting enclosed pallet

• Intelligent control and drive technology, flexible and safe operating

• Adjustable fork width

• Easy service and maintenance

Specification:

• Capacity : 1000kg

• Load Capacity on Max Height : 500kg

• Lift Height : 3500mm

• Load Center Distance : 600mm

• Fork Length : 1150mm

• Fork Length : 210-830mm

• Single Fork Width : 100mm

• Min Fork Height : 85mm

• Support Leg Length : 1120mm

• Support Leg Height : 100mm

• Single Support Leg Width : 50mm

• Support Leg Inside Width : 1225mm

• Support Leg Outside Width : 1325mm

• Overall Length : 1800mm

• Overall Width : 1325mm

• Lowered Mast Height : 2244mm

• Extended Mast Height : 3924mm

• Lifting Motor : 2.2kw

• Driving Motor : 0.75kw

• Battery Voltage : 2x12V/100Ah

• Charger : 24V/10A

• Unit Weight : 580kg

In Stock Melbourne.
